Understanding car trailer length is one of the most important aspects of safe towing and efficient vehicle transport. Many drivers underestimate how much trailer size impacts handling, braking, and even compliance with road regulations. Confusion often arises between total trailer length, deck length, and legal limits—each plays a distinct role in towing safety and performance. This article provides a clear and practical explanation of how to measure, select, and optimize your trailer length, with expert advice and examples tailored for both beginners and professionals.

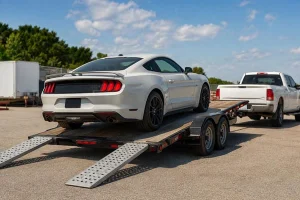

What Is Car Trailer Length?
Before choosing or purchasing a trailer, it’s crucial to understand what “length” really means. The total trailer length refers to the distance from the very front of the hitch coupler to the rearmost point of the trailer, often including the ramp. However, when manufacturers list a “20 ft trailer,” they usually refer to the deck length—the usable flat area where the car actually sits. This can create confusion because the total physical length might be 22 or even 23 feet when you include the tongue and ramp extensions.
Manufacturers vary in how they label dimensions: some specify deck-only measurements, while others provide full-frame lengths. When comparing trailers, always check which measurement standard is used. For instance, an 18 ft deck length may better suit a sedan, while an enclosed trailer listed as 22 ft might offer the same usable space due to internal framing. Visualizing these differences with a simple side diagram can help you compare car trailer dimensions accurately.
How to Measure a Car Trailer Length Correctly
Proper measurement is essential to avoid mismatches between vehicle and trailer. Follow these simple steps:
1. Park on level ground — this ensures accuracy and safety.
2. Measure from the hitch coupler tip to the end of the ramp. This gives you the total trailer length.
3. Record deck-only length for cargo calculations, which determines if your vehicle fits comfortably.
You'll need a steel measuring tape, a chalk line, and a spirit level for precise results. A common mistake is excluding add-ons such as toolboxes, spare tire mounts, or folded ramps—each can extend your overall footprint.
A quick formula helps avoid confusion:
Total Length = Deck Length + Tongue Length + Ramp Extension (if applicable).
Accurate measurement ensures proper balance, legal compliance, and prevents overloading—three factors that directly influence driving stability and tire wear.
Standard Car Trailer Lengths and Use Cases
Choosing the right size depends largely on what you plan to haul. Below is a general overview:
| Trailer Type | Common Lengths | Ideal For | Notes |
|---|---|---|---|
| Utility Trailer | 12–16 ft | Compact cars, ATVs | Lightweight, easy to store |
| Car Hauler | 16–20 ft | Sedans, small SUVs | Most popular for private use |
| Race Car Trailer | 20–24 ft | Sports cars, track equipment | Includes ramps, may need tandem axles |
| Enclosed Trailer | 18–28 ft | Classic cars, show vehicles | Offers weather protection, adds weight |
The average car trailer size for most users falls between 16 and 20 feet, which balances maneuverability with adequate deck space. Shorter trailers are easier to tow and park, but they limit flexibility if you upgrade vehicles later. Conversely, a longer trailer increases storage options and load stability but may reduce fuel efficiency and require a higher-capacity towing vehicle.
Key Factors When Choosing Trailer Length
Selecting the perfect trailer involves more than just vehicle fit—it’s about optimizing performance and ensuring safety.
- Vehicle Towing Capacity: Always check your vehicle’s Gross Vehicle Weight Rating (GVWR) and tongue weight limits in the owner’s manual. Overestimating capacity can cause brake strain or sway.
- Load Type: A compact car needs less deck space than a pickup or two ATVs. Plan at least two feet of clearance beyond your vehicle’s bumper-to-bumper length.
- Storage Constraints: Measure your parking or garage area. A 20 ft trailer may require over 24 ft of total space including the hitch.
- Driving Frequency: If you haul daily, prioritize stability and length efficiency. Occasional users may prefer shorter, more agile trailers.
- Legal Compliance: In the U.S., the combined vehicle and trailer length usually must not exceed 65 ft
Understanding these variables ensures your choice aligns with both practicality and the legal trailer length limits set by state and federal authorities.
How Trailer Length Affects Performance
Trailer length significantly influences driving dynamics. Longer trailers tend to be more stable at highway speeds and distribute load evenly, reducing bounce. However, they’re harder to maneuver in tight areas, require larger turning radii, and increase braking distances.
Shorter trailers, while more agile, are more prone to sway—especially in crosswinds or when improperly loaded. They also place higher stress on rear axles and tires. Fuel economy can drop as trailer length and weight increase; for example, a 20-ft car hauler trailer length might reduce fuel efficiency by 10–15% compared to a 16-ft model, depending on aerodynamics and weight.
A balanced setup—with 60% of the weight on the front half—minimizes sway and improves braking control. The key takeaway: the right car trailer dimensions directly determine safety and comfort during towing.
Legal and State Regulations
Complying with legal trailer length limits is not optional—it’s mandatory. According to the Federal Motor Carrier Safety Administration (FMCSA), the typical trailer length limit in the U.S. ranges between 40 and 53 feet, depending on the state. The combined vehicle-trailer length must not exceed 65 feet in most states.
Special cases include California and Oregon, where overall limits are slightly shorter for residential roads. Exceeding these limits can lead to fines or forced roadside inspections. When transporting across states, always check local Department of Transportation (DOT) websites or consult a state-by-state trailer length chart before traveling.
Legal awareness not only prevents penalties but also demonstrates professional responsibility—especially for commercial operators or car haulers working across regions.
Expert Advice
Industry professionals often emphasize that trailer length affects far more than loading convenience.
John Miller, Senior Trailer Engineer at Titan Equipment Co., advises:
"Always measure both usable deck space and total trailer footprint before buying. A common mistake is assuming '20 feet' means total length—it's often 22–23 ft including tongue."
Samantha Reed, a DOT Safety Consultant, notes:
"If you're towing long distances, shorter trailers improve stability and reduce fuel consumption. But for enclosed haulers, a slightly longer deck helps balance weight distribution."
Lynn Harper, a Trailer Dealer, shares a business insight:
"The most returned trailers are 16 ft models bought for vehicles that need 18 ft decks. Always measure your car's bumper-to-bumper length before purchase."
Their advice aligns on one point: measure twice, buy once. Precision and foresight prevent costly mistakes.
Maintenance Considerations for Long Trailers
Longer trailers require more attention to maintenance because every extra foot adds stress to the frame, axles, and tires. Regular checks can prevent breakdowns and extend lifespan:
● Grease wheel bearings annually or every 12,000 miles.
● Inspect brake controllers for proper load distribution.
● Examine ramp hinges and deck bolts for rust or loosening.
Keep in mind that longer decks are more susceptible to bending and torsion stress—especially when improperly loaded. Always aim for even weight distribution, keeping 60% of the cargo weight on the front half of the trailer. This small habit can prevent fishtailing and prolong your tires' lifespan.
Conclusion
Selecting the right car trailer length is about more than measurement—it’s about achieving harmony between safety, performance, and legal compliance. Whether you’re towing a race car, a family SUV, or heavy equipment, understanding your car trailer dimensions and regional regulations ensures a smoother, safer journey. Always measure before you tow and consult professionals when in doubt—because in towing, precision isn’t optional, it’s essential.
Measure before you tow — the right trailer length keeps you safe, compliant, and efficient.
FAQ
How do I know what trailer length fits my car?
Measure your vehicle from bumper to bumper, then add 2–3 feet for tie-down clearance. For instance, a 15-ft sedan typically fits best on an 18-ft trailer.
Does trailer length include the tongue or hitch?
Usually not. The listed car trailer length refers to deck length only. The total physical length can be 2–3 ft longer depending on the tongue and ramp setup.
What happens if my trailer is too long for my vehicle?
Oversized trailers reduce control, increase sway, and can exceed your vehicle’s towing limit—potentially causing safety hazards or legal violations.
What is the legal trailer length limit in the U.S.?
Most states cap trailer length at 40–53 ft, with total combination limits at 65 ft. Always confirm your state’s current legal trailer length limits before hitting the road.
Should I choose a longer trailer "just in case"?
Experts advise against it. An unnecessarily long trailer reduces fuel efficiency, increases wear, and complicates parking. Choose only 1–2 ft more than needed for safe flexibility.
